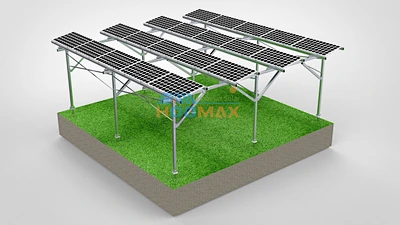

Aluminum Solar Farmland Mounting System

HM-FL-AL
Farmland Mounting System is applicable to the PV array system on the farmland. Its material, including the hot galvanized steel and anodized aluminum alloy, is all anti-corrosive. According to practical requirements, the system could be planned and customized on the factory to eliminate the welding and cut onsite to save time and money.
Quantity:
Contact Now
add to cart


    Installation Site

    Open ground

    Wind Load

    Up to 60m/s

    Snow Load

    1.4KN/m²

    Tilt Angle

    10~60deg

    Standard    AS/NZS 1170

    Material

    Aluminum alloy Al6005-T5& Stainless steel 304 & Hot galvanized steel 80um
    Anti-corrosive

    Anodized & Hot galvanized

    Color    Natural or Optional
    Warranty

    15 years warranty and up 20 years service life
